screw oil press machine

Author: Admin View: Post Time: 2016 / 11 / 23

Introduction of screw oil press machine
Screw oil press is a popular type of oil press machine, mainly composed of feeder, gearbox, pressing chamber and oil receiver. Some screw oil press machines are equipped with electric motors as required. Pressing chamber is the key part which contains a pressing cage and a screw shaft rotating in the cage. This kind of screw oil presses utilizes the screw shaft which is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring.
Advantages of screw oil press machine
1. Wide application of material: peanut, soybean, sesame, sunflower, flax seed, cotton seeds, etc;
2. High oil yield : the oil output is 35% - 50% higher than common oil press.
3. Low residual: the oil residual in cake is only about 5%.
4. Little land occupancy: only 10-20 ㎡.

screw oil press machine


Features of screw oil press machine
1. Made of high quality steel, wear-resistant and easy to clean.
2. With the properly designed pressing chamber, the increased pressure in the chamber highly improves working.

Technical parameter of screw oil press machine

Type 6YL-60 6YL-70 6YL-80 6YL-100 6YL-120 6YL-150

Screw diameter  (mm)

 55 65 80 100 120 150

Screw speed (r/min)

 52 48 63 43 36 33-42

Power (main frame) (KW)

 2.2 3 5.5 7.5 11 15

Vacuum power (KW)

 0.55 0.75 0.55 0.75 0.75 4

Heater (KW)

 0.9  1.8  3 3.5 4 4.5

Handling capacity (kg/h)

 30-60  50-80 80-150 150-250 250-350 300-450

Weight (kg)

 220 280 500 850 1300 1950
Size (mm)  1200x780x1100 1400x860x1260 1650x1500x1700 1700x1600x1750 1800x1700x1750 2380x1850x2000

Oil yield table (FYR)

Material
Oil press rate(%) Cookie thickness(mm) residual oil rate(%)
Sesame 42-55 1.0-1.5 <=7
Peanut 40-50 0.8-2.0 <=8
Rapeseed 28-38 1.0-1.5 <=8
Oil sunflower 28-35 1.2-1.5 <=8
Soybean 10-16 0.8-1.5 <=7
Flax 33-40 0.8-1.5 <=7
Cotton seed 11-25 1.0-2.0 <=6
walnut 42-52 0.8-1.5 <=6
Camellia seed 26-38 1.0-2.0 <=6

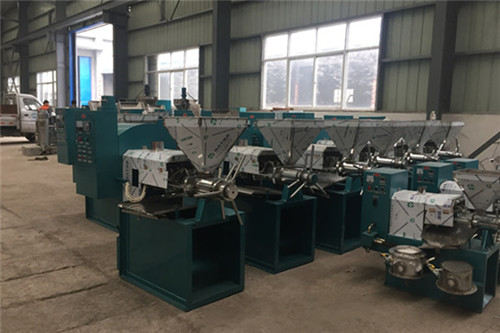

Factory workshop photo

screw oil press machine
