flax oil press machine

Author: Admin View: Post Time: 2016 / 11 / 23

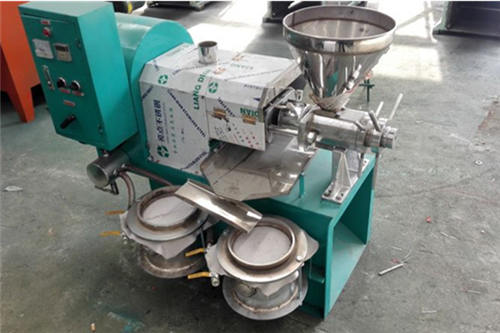

flax oil press machine

Introduction of flax oil press machine
The flax oil press different ways of making linseed oil is also different, can be divided into cold and hot pressed linseed oil and linseed oil two.
The hot flax oil press machine feature:
Hot oil press machine The linseed stir-fried, made with the physical compression process, the oil rate is relatively high.
Cold flax oil press machine feature:
1, to avoid the high-temperature pressing in the oil, sugar degradation and protein degradation caused by the loss of nutrition;
2, to avoid the high temperature caused by the color of linseed oil becomes darker, paste smell phenomenon;
3, effectively prevent the high temperature of the flaxseed oil polyunsaturated fatty acids - α-linolenic acid damage, and effectively retain the natural, good nutrients, more easily absorbed by the body and nutritional supplements;
4, Cold oil press retains most of the nutrients in flax seed, fresh taste is not greasy, rich in polyunsaturated fatty acids.
Technical parameter of flax oil press machine

Type 6YL-60 6YL-70 6YL-80 6YL-100 6YL-120 6YL-150

Screw diameter  (mm)

 55 65 80 100 120 150

Screw speed (r/min)

 52 48 63 43 36 33-42

Power (main frame) (KW)

 2.2 3 5.5 7.5 11 15

Vacuum power (KW)

 0.55 0.75 0.55 0.75 0.75 4

Heater (KW)

 0.9  1.8  3 3.5 4 4.5

Handling capacity (kg/h)

 30-60  50-80 80-150 150-250 250-350 300-450

Weight (kg)

 220 280 500 850 1300 1950
Size (mm)  1200x780x1100 1400x860x1260 1650x1500x1700 1700x1600x1750 1800x1700x1750 2380x1850x2000

Oil yield table

Oil press rate(%) Cookie thickness(mm) residual oil rate(%)
Sesame 42-55 1.0-1.5 <=7
Peanut 40-50 0.8-2.0 <=8
Rapeseed 28-38 1.0-1.5 <=8
Oil sunflower 28-35 1.2-1.5 <=8
Soybean 10-16 0.8-1.5 <=7
Flax 33-40 0.8-1.5 <=7
Cotton seed 11-25 1.0-2.0 <=6
walnut 42-52 0.8-1.5 <=6
Camellia seed 26-38 1.0-2.0 <=6

Packing & Delivery of flax oil press machine

flax oil press machine

Customer visiting of of flax oil press machine

flax oil press machine

Detailed image -- press screw of flax oil press machine

flax oil press machine

Gongyi Zhanjie Hengtong machinery mainly produce flax oil press machine, flax seed cold oil press machine, cold press flax seed oil machine, if you are interested in the machine, please contact with me! The email address is hengtongmachinery@yahoo.com.
