small oil press machine

Author: Admin View: Post Time: 2016 / 11 / 23

small oil press machine

Introduction & Advantages of small oil press machine
The working process of small oil press machine could be easily seen with small size, vacuo filter and the temperature can be controlled automatically. The final oil product has high quality and good smell, high rate of oil yield rate. The machine can be used in the small oil press mill in urban and countryside area. The machine is popular among most customers. The dimension is about 1550×1200×1750 for 6YL-80, and 1700×1300×1850 for 6YL-100.
Working principle of small oil press machine
The main part of small oil machine is the chamber, which is composed of cage and screw with the cage. Its working process is the reduce the space of spiral screw lead screw diameter or increase the space of circle diameter gradually, so that squeeze the chamber volume is shrinking. The seeds cake can be squeezed and sent out from the end part. Generally the whole process has three sections that is preparation, pressing and cake-out.
Technical parameter of small oil press machine

Type 6YL-60 6YL-70 6YL-80 6YL-100 6YL-120 6YL-150

Screw diameter  (mm)

 55 65 80 100 120 150

Screw speed (r/min)

 52 48 63 43 36 33-42

Power (main frame) (KW)

 2.2 3 5.5 7.5 11 15

Vacuum power (KW)

 0.55 0.75 0.55 0.75 0.75 4

Heater (KW)

 0.9  1.8  3 3.5 4 4.5

Handling capacity (kg/h)

 30-60  50-80 80-150 150-250 250-350 300-450

Weight (kg)

 220 280 500 850 1300 1950
Size (mm)  1200x780x1100 1400x860x1260 1650x1500x1700 1700x1600x1750 1800x1700x1750 2380x1850x2000

Oil yield table

Material
Oil press rate(%) Cookie thickness(mm) residual oil rate(%)
Sesame 42-55 1.0-1.5 <=7
Peanut 40-50 0.8-2.0 <=8
Rapeseed 28-38 1.0-1.5 <=8
Oil sunflower 28-35 1.2-1.5 <=8
Soybean 10-16 0.8-1.5 <=7
Flax 33-40 0.8-1.5 <=7
Cotton seed 11-25 1.0-2.0 <=6
walnut 42-52 0.8-1.5 <=6
Camellia seed 26-38 1.0-2.0 <=6

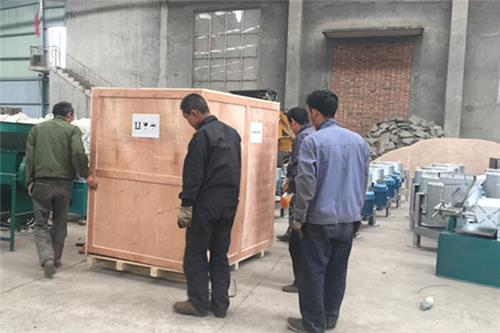

Delivery photo

small oil press machine

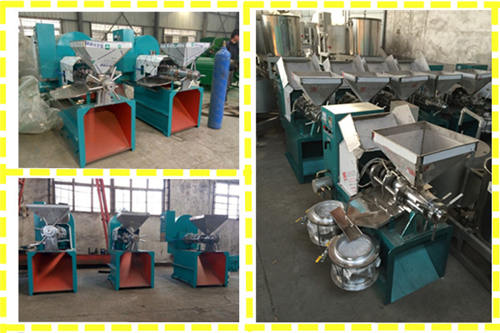

Detailed photo

small oil press machine
